| 產(chǎn)地 | 中國 |
|---|---|
| 是否進口 | 否 |
| 工作電流 | 40μA @ 28 VDC(Maximum) |
| 規(guī)格 | 103*55mm |
| 工作電壓 | 16-28VDC |
| 顏色 | 白色 |
| 品牌 | HST |
| 型號 | HD102B |
Specifications
Operating Voltage Range: 16 to 28VDC Volts Non-polarized
Standby Current: 40μA @ 28 VDC(Maximum)
Alarm Current (LED on: ) 30mA @ 28 VDC(Maximum)
Temperature Class: A2R
Operating Temperature Range: 14°F to 122°F (-10°C to50°C)
Operating Humidity Range: 10% to 93% Relative Humidity, Non-condensing
Height: 255 mm installed in base
Diameter: 103 mm
Weight: 5.5 oz. (155 g)
Color & Material White/ ABS

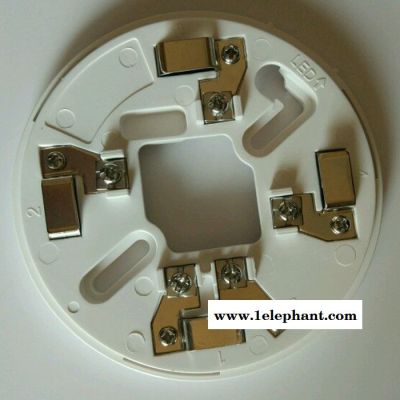

bases HD10X
Compatible control panels Conventional fire alarm control panel
