| 產地 | 江蘇 |
|---|---|
| 應用領域 | 醫療 |
| 種類 | 非織造布生產線 |
| 包裝類型 | 箱 |
| 品牌 | 阿萊特 |
| 型號 | ALT-175-2 |
| 加工定制 | 是 |

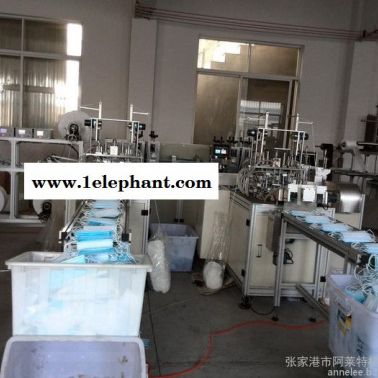

ALT-AUTO175-2型口罩機是一臺全自動化生產外耳帶口罩的生產設備。本機是有一自動分疏系統連接一臺ALT-175口罩本體機和兩臺ALT-WD175型外耳帶機組成。
本體機生產的口罩本體，可由PLC平均分配到兩套外耳帶機上以每分鐘100-150片的速度生產。全過程都可以通過人機介面觸摸屏操作控制。
這套組合除ALT-175型口罩本體機必需有，后段部分可根據客戶要求任意換1，或者2套耳帶點帶機
ALT-AUTO175 is a unit of fully automatic ear-loop mask making machine. This machine unify 1 unitALT-175 and 2 units ALT-WD175 by a unit of automated dispenser.
Mask bodies produced on mother machine can be allocated onto 2 units child machine averagely by PLC atthe speed of 100-150 pieces per minute. All of operation of the machine
is controlled through touch screen,theinterface of man and machine.
On this combination the mask body machine can match with 1, or2units of ear-loop, machine
產品特點 FEATURES:
1.機臺體積小，占地小，全機采用鋁合金結構，美觀堅固不生銹；
The machine is made of aluminum alloy which makes it beautiful,prevented from rust and has a small size.
2.產量極高，可根據客戶要求生產1-5層口罩本體；
The machine can make the 1--5 levels mask blank according for the customer's require with a high output;
3.口罩本體的折疊位置可調整，尺寸也可調整；
You can adjust the size of the mask blank and the folding location；
4.口罩耳帶的方向是向外；
The direction of the earloop is outside；
5.與分段口罩生產設備相比，此套設備更高效，更節省人工；
Compared with sub-mask production equipment, this set of equipment more efficient, more economicalartificial；
6.PLC程式控制，光電檢測，可靠性極高，故障率低；
The computer program control and photoelectric detection make it have a high reliability and lowfailure rate；
機器規格 SPECIFICATION:
1.機臺尺寸:4400*4000*1700mm. （輸送帶橫著放寬度減少900mm）
Machine size: 4400(L)*4000(W)*1700
2.產量：80-95pcs/min
Throughput: 80-95cs/min
3.電壓：220V or380 V
Line source: 220V or 380V, 1 or 3 phase
4.特殊要求：口罩本體尺寸必須固定
Special requirements: a mask body size must be fixed
5.氣壓：6KG/cm2
Atmospheric pressure:6kg/cm2(minimum)
6.功率：11KW
Power consumption: 11KW
配置： INSTRUCTIONS:
序號 | 項目 | 數量 |
1 | 超聲波 | 6臺（臺灣） |
2 | 馬達 | 1臺（永坤） |
3 | 伺服電機 | 3臺（臺達） |
4 | 變頻器 | 1臺（四方） |
5 | PLC | 2臺（臺達） |
1臺（三菱） | ||
6 | 觸摸屏 | 1臺（威綸） |
7 | 輸送馬達 | 5臺 |
8 | 靜電消除器 | 2臺（廣東） |
9 | 汽缸 | 新恭和亞德克 |
10 | 恒張力控制系統 | 4套 |
11 | 輸送帶 | 2套 |
12 | 軸承 | NSK |
13 | 框架 | 鋁合金 |
14 | 封板 | 不銹鋼 |
15 | 減速機 | 3臺 |
No | Item | Quantity |
1 | Ultrasonic | 6sets(Taiwan) |
2 | Motor | 1set TaiWan “YongKun” |
3 | Servo motor | 3sets （Delta） |
4 | Inverter | 1set TaiWan “Sunfar” |
5 | PLC | 1set Japan “Mitsubishi” |
2sets (Delta) | ||
6 | Touch screen | 1 set TaiWan “Wei- Lun” |
7 | Transport motor | 5sets |
8 | Silent killer | 2sets(Guangdong) |
9 | Cylinder | New Christine and AirTAC |
10 | Constant Tension System: | four sets |
11 | Conveyor | 2 sets |
12 | Bearing | NSK |
13 | frame: | Aluminum |
14 | Closure plate | :stainless steel |
15 | Reducer | 3sets |
Payment:After 30% of the total value is paid in advance by (T/T),
The left 70% should be paid by (T/T) after you check up the finished
machine. And the cargo will be delivered after all the payment
arrives at our account.
Delivered time: 30days after confirm the order
Warrant term: 1 year
Package:Wooden Packing
Installationand test: The buyer should pay the round tickets， visa fee，food and accommodation in your country and our engineers $100 per day if youneed our training and installation abroad.
